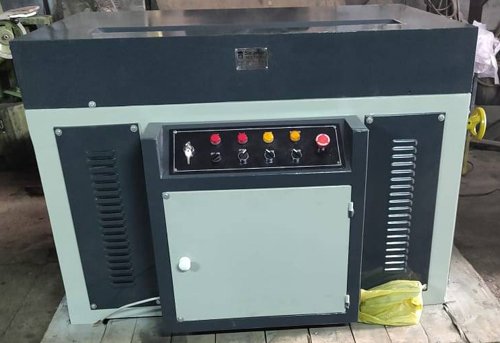

Notebook Edge Squaring Machine.

Sikandar Graphics always welcome your quiries, please contact us at email:sikandargraphics@gmail.com for your requirements of selected machinery.
Exercise Notebook Spine Flatten Edge Squaring Press Hydraulic
Rs.200000.00

 Exercise Notebook Spine Flatten Edge Squaring Press Hydraulic-PLC controlled-

 Add value to your finishing of Center Stitched/Sewn Magazines, Booklets, Exercise Notebooks, Balance Sheet etc.Exercise Notebook Spine Flatten Edge Squaring Press Hydraulic offered by Sikandar Graphics is a very useful machine to flatten the spine of the books, exercise notebook.Mainly the machine is used for flattening the back of the exercise notebooks



The book/exercise Notebook is hydraulically pressed by pressure plates to clamp the book/exercise Notebook, spine is pressed by hydraulic pressure (adjustable to suit paper used) which is controlled by PLC (Programmable Logic Control) that can be set to desired results.



The machine in Automation mode operate automatically, (a) first press the notebooks then the rollers flatten the edge, (b) the first press get released slightly and again presses the notebooks and the rollers again flatten the edge. This completes One Cycle. It hardly takes a few seconds.

Specification

Model SG70SQ SG80SQ SG90SQ SG100SQ
Book Width 700 mm 800 mm 900 mm 1000 mm
Book Spine(Min-Max) 5-70 mm(Best Results) 5-70 mm(Best Results) 5-50 mm(Best Results) 5-50 mm(Best Results)
Book Height(Min) 100 mm 100 mm 100 mm 100 mm
System Clamp Pressure upto 10 tons upto 10 tons upto 10 tons upto 10 tons
Squaring Pressure 3500 Kg 3500 Kg 3500 Kg 3500 Kg
Hydraulic Oil Capacity 80 Ltrs 90 Ltrs 100 Ltrs 100 Ltrs
Electrical Load/Motor 2.25 KVA/3 H.P. 2.25 KVA/3 H.P. 2.25 KVA/3 H.P. 2.25 KVA/3 H.P.
Electrical Supply 400/440 AC 50Hz 3 Ph 400/440 AC 50 Hz 3 ph 400/440 AC 50 Hz 3 ph 400/440 AC 50Hz 3 Ph
Overall Dimentions(WxDxH) May vary Front107xBack106xHeight96 cm Front117xBack106xHeight96 cm Front127xBack106xHeight96 cm Front137xBack106xHeight96 cm
Net Weight/Gross (approx) 900/1100 Kgs 1000/1200 Kgs 1100/1300 kgs 1200/1400 kgs
Video
